If you’re an engineer maintaining HVAC units, you need to understand some fundamental concepts. Two important terms to grasp are superheat and subcooling. These are critical to the refrigeration cycle, but can be tough concepts to visualize. So, what are superheat and subcooling?

What are superheat and subcooling?

At a high level, superheat occurs when you heat vapor above its boiling point. Subcooling occurs when you cool a vapor below the temperature at which it turns into a liquid.

But let’s dive in deeper, starting with superheat.

Boiling is when a liquid gains heat and transforms into a vapor. Remember, superheat occurs when you heat vapor above its boiling point.

Read more: The ROI of HVAC and Energy Management in Commercial Office Buildings

Read more: The ROI of HVAC and Energy Management in Commercial Office Buildings

Learn how a sustainable HVAC management strategy can boost your bottom line 10% and reduce your annual energy costs 20%.

Let’s say that a refrigerant boils at 40 degrees Fahrenheit at a low pressure in the evaporator. Then you continuously heat the vaporized refrigerant, elevating its temperature to become a 50-degree vapor. This temperature increase above the boiling point is superheat. The formula to calculate superheat uses the current temperature and boiling point.

Superheat = Current Temperature – Boiling Point

In this example, the superheat is 10-degrees.

Superheat is critical in HVAC because it ensures the liquid refrigerant is boiled off before it leaves the evaporator and heads to the compressor. Even small amounts of liquid can cause detrimental damage to a compressor in an HVAC system.

While evaporation and superheat occur in the evaporator, condensation and subcooling occur in the condenser.

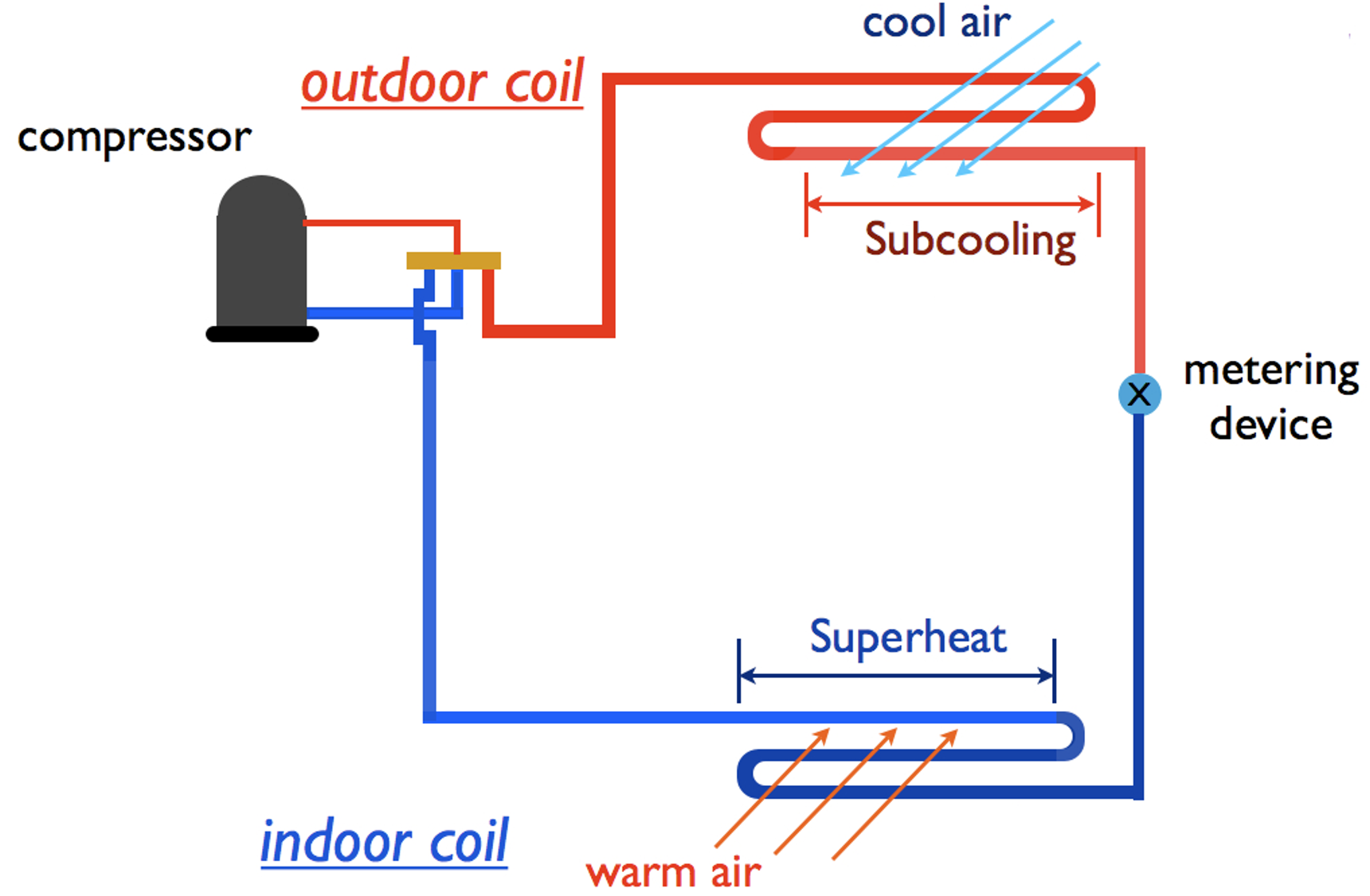

Diagram of superheat and subcooling Diagram of superheat and subcooling

Condensation happens when a vapor loses heat and turns into a liquid. Subcooling occurs when you cool a vapor below the temperature at which it turns into a liquid.

Let’s use the same refrigerant with a high pressure boiling point of 120 degrees for the following example:

The refrigerant is a 140 degree vapor heading into the condenser. Once the condenser cools the refrigerant to 120 degrees, it will begin to turn back into a liquid. But the cooling does not stop there! Subcooling is also calculated using the boiling point (sometimes referred to as the condensing point) and current temperature.

Subcooling = Boiling Point – Current Temperature

So, if the condenser brings the refrigerant temperature down to 105 degrees, it has been subcooled by 15 degrees. In the refrigeration cycle, subcooling is an important process that ensures liquid refrigerant enters the expansion device.

Read more: Learn How to Reduce HVAC Energy Consumption up to 55%

Read more: Learn How to Reduce HVAC Energy Consumption up to 55%

Discover how DivcoWest reduced energy consumption 55% and saved $270 a day on energy bills.

Key takeaways: superheat occurs in the evaporator to protect the compressor, and subcooling occurs in the condenser to protect the expansion device.
